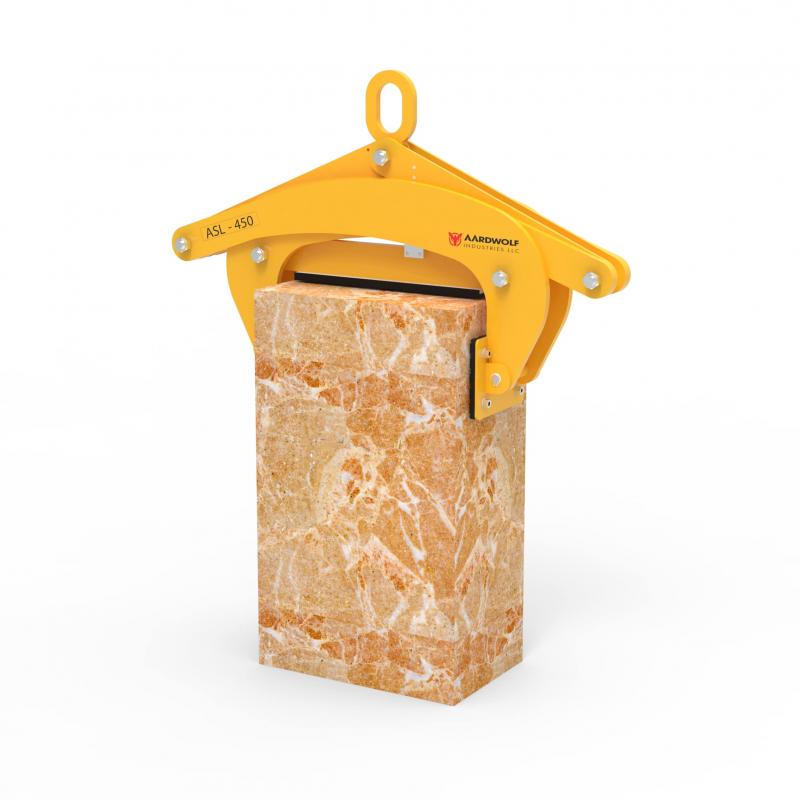

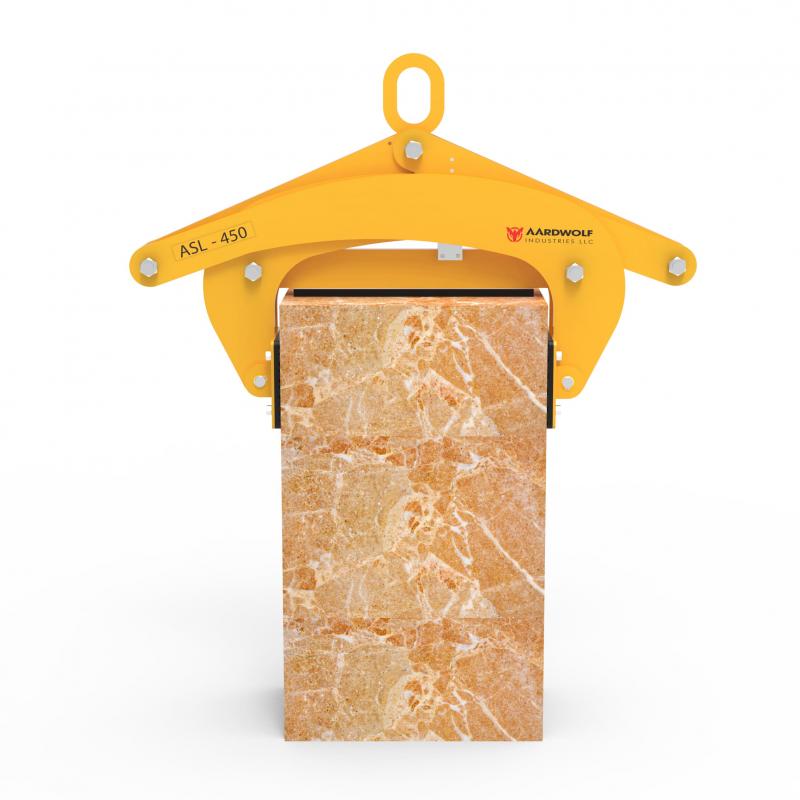

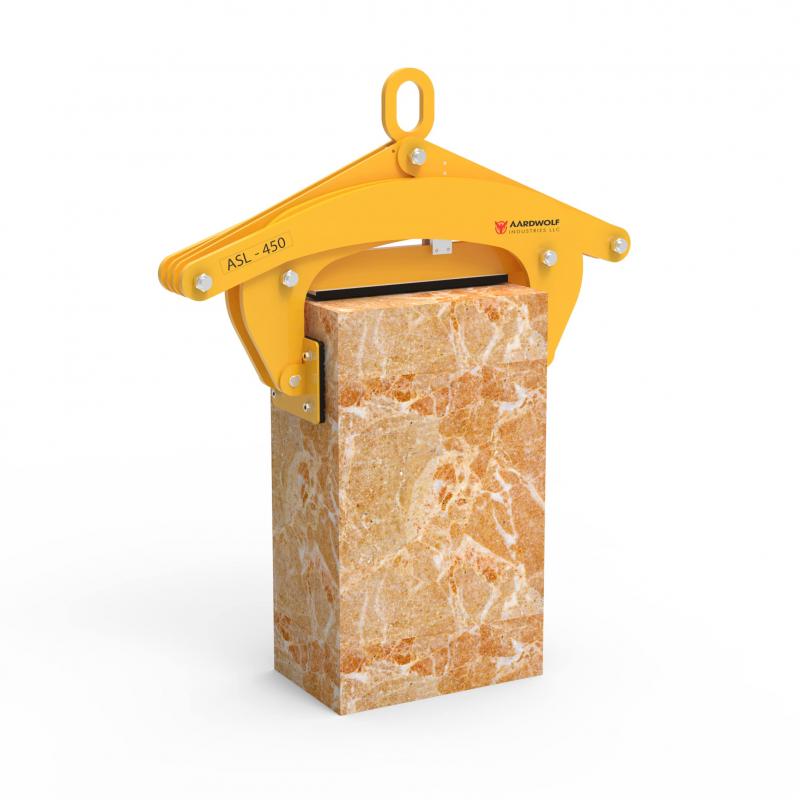

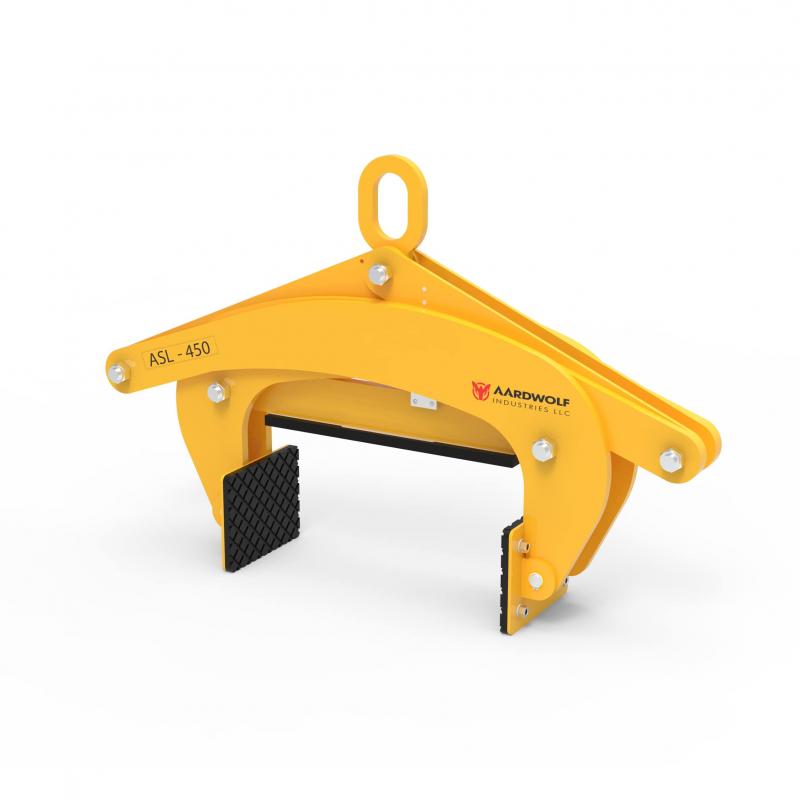

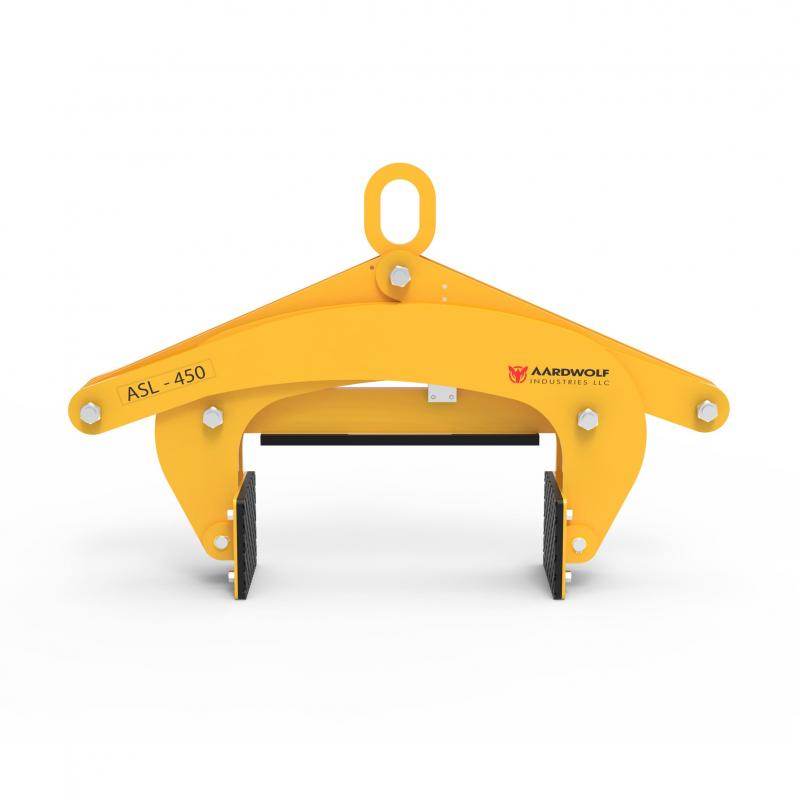

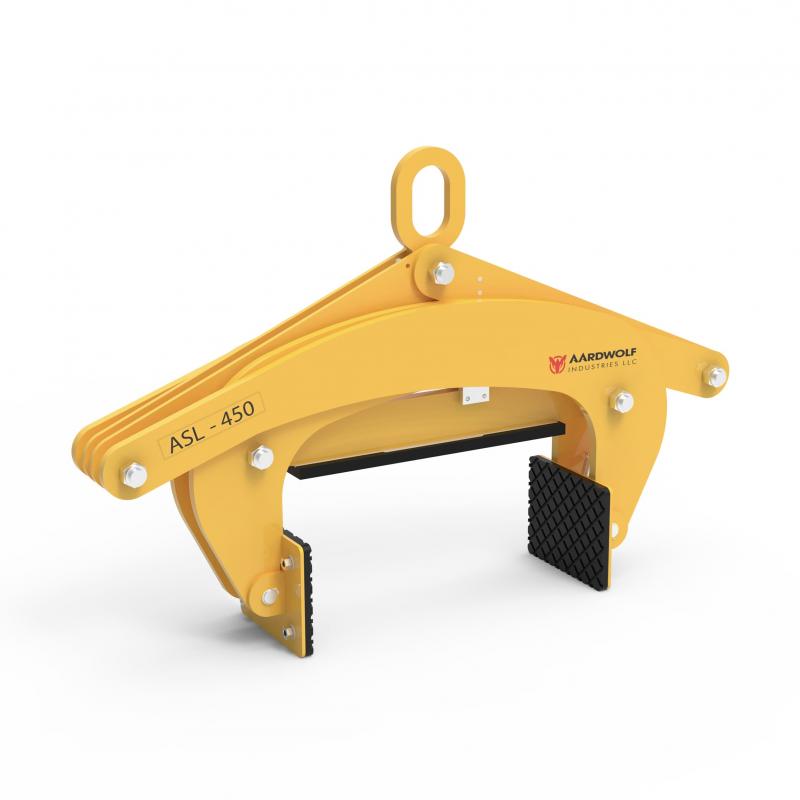

ASL450

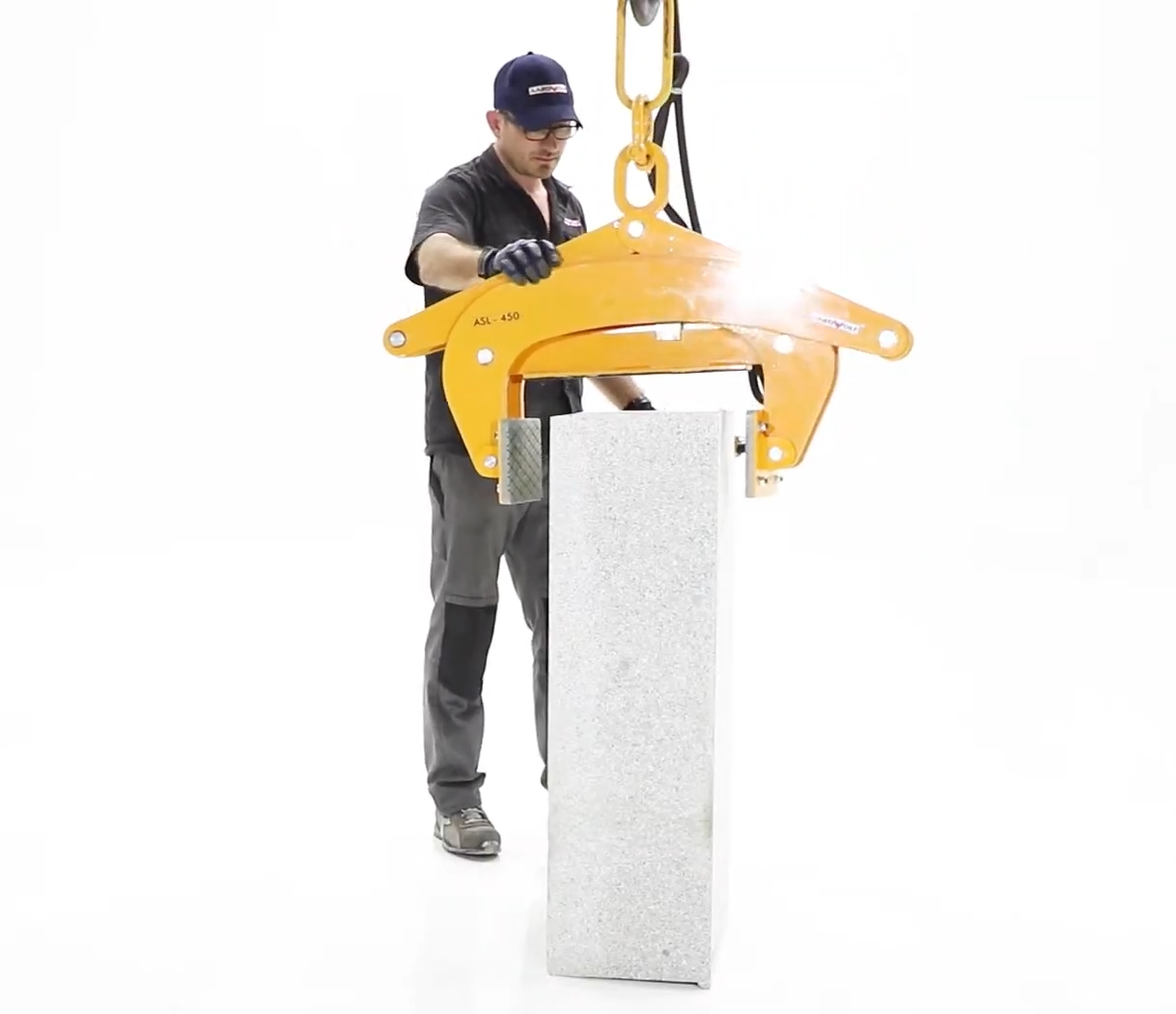

Suitable for lifting marble slab, granite slab, concrete guardrail, road shoulder and middle wall, etc.?The product uses the weight reflection of the stone itself to clamp the object, and the rubber pad can better protect the stone surface.
Please call 86-0757-22818555 for information and order Consult
TECHNICAL PARAMETERS
| 型號 Model NO. | ASL105 | ASL125 | ASL200 | ASL300 | ASL450 |
| 鉗口范圍 Grip Range | 0-105mm | 0-125mm | 50-200mm | 150-300mm | 300-450mm |
| 承重力 Working Load Limit | 750kgs | 750kgs | 1000kgs | 1500kgs | 2000kgs |
| 凈重 Net Weight | 24kgs | 29kgs | 47kgs | 48kgs | 85kgs |
| 毛重 Gross Weight | 25kgs | 33kgs | 50kgs | 51kgs | 99kgs |
| 包裝尺寸 Package Dimensions | L680×W220×H370mm | L790×W230×H400mm | L820×W230×H450mm | L700×W230×H480mm | L1050×W230×H690mm |
